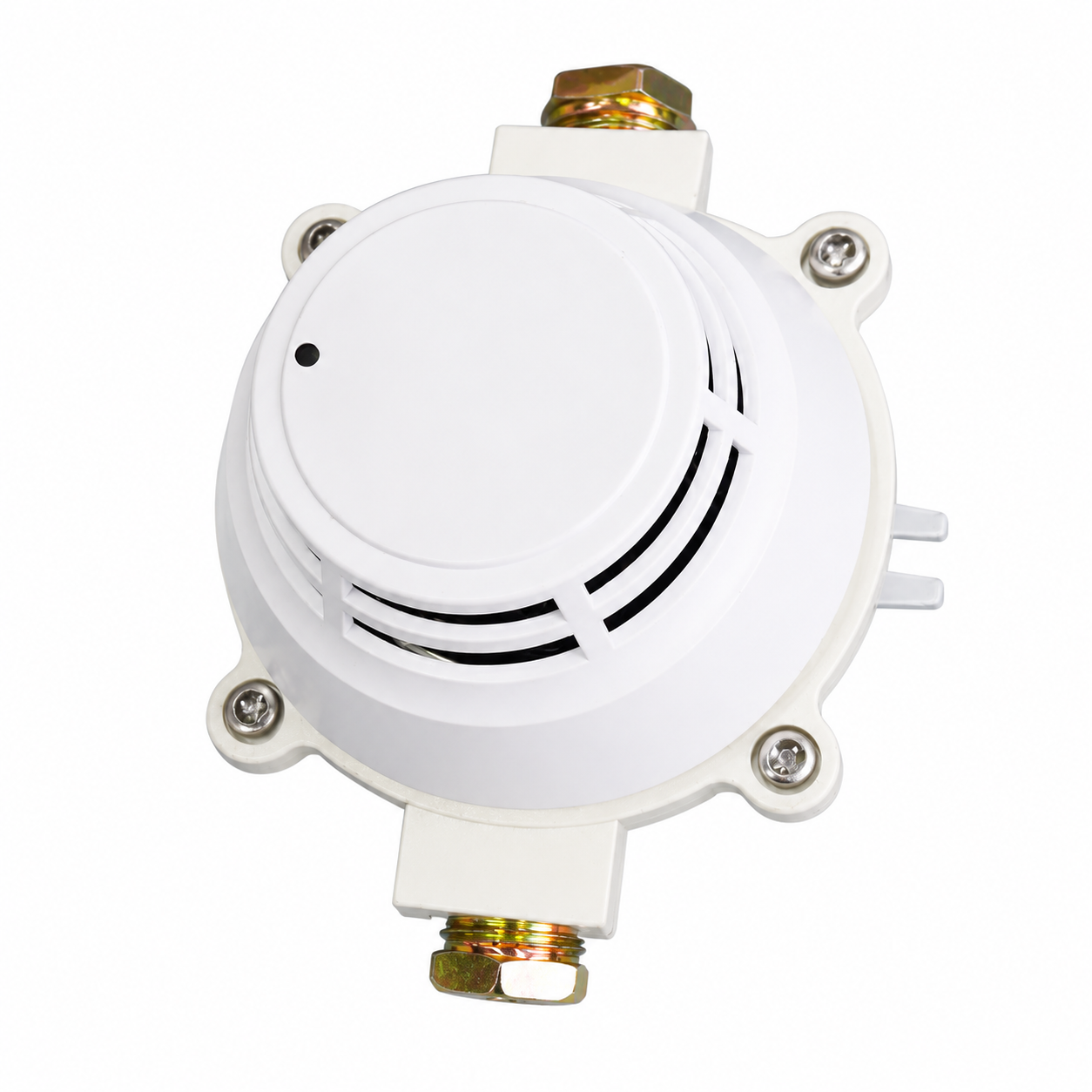

The AT-ES02 Addressable Explosion Proof Smoke Detector is designed for hazardous industrial locations where both explosion-proof protection and addressable fire alarm monitoring are required.
The detector combines an explosion-proof enclosure with an intelligent photoelectric smoke detection module. It is suitable for explosive gas atmospheres and combustible dust environments, including Zone 1, Zone 2, Zone 21 and Zone 22 applications.
Compared with a conventional relay-output explosion proof detector, the addressable AT-ES02 communicates with a compatible addressable fire alarm control panel through a two-wire loop bus. Each detector occupies one address, allowing the fire alarm control panel to identify the exact alarm location.
The AT-ES02 is suitable for oil and gas facilities, chemical plants, fuel storage areas, paint rooms, battery rooms, electrical rooms, hazardous warehouses, industrial workshops and other classified hazardous areas where standard smoke detectors are not suitable.
ATEX explosion proof smoke detector for hazardous area applications
Addressable fire alarm communication for exact detector location identification
Suitable for Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas
Photoelectric smoke detection for early fire warning
Two-wire addressable loop connection
Polarity-insensitive loop wiring for easier installation
Electronically addressed by coder
Suitable for explosive gas and combustible dust environments
Designed for oil, gas, chemical, fuel storage and industrial projects
Compatible with ANWETECH addressable fire alarm control systems
Explosion proof structure for hazardous locations
Addressable photoelectric smoke detection
Electronic addressing by coder
Occupies one address in the fire alarm loop
Two-wire loop bus, polarity-insensitive
Real-time alarm signal transmission to the fire alarm control panel
Red LED indicator for normal monitoring and alarm status
Optional remote indicator output
Rugged industrial housing for harsh environments
Suitable for hazardous areas where standard smoke detectors cannot be used
Explosion proof cable gland
Explosion proof junction box
Address coder
Remote indicator
Compatible ANWETECH addressable fire alarm control panel
Addressable relay module
Addressable input / output module
| Item | Specification |
|---|---|
| Model | AT-ES02 |
| Product Type | Addressable Explosion Proof Smoke Detector |
| Detection Principle | Photoelectric smoke detection |
| Certification Keyword | ATEX explosion proof |
| Explosion-Proof Mark | Ex db ib IIC T6 Gb / Ex ib tb IIIC T80°C Db |
| Hazardous Area | Zone 1, Zone 2, Zone 21, Zone 22 |
| Gas Group | IIA, IIB, IIC |
| Temperature Class | T1–T6 |
| Addressing Method | Electronically addressed by coder |
| Address Range | Occupies one address within 1–324 |
| Wiring Method | Two-wire loop, polarity-insensitive |
| Alarm Signal | Addressable alarm signal to compatible fire alarm control panel |
| Remote Indicator Output | Polarity-sensitive output, max. 2 mA |
| Indicator Status | Red LED flashes during monitoring and remains steadily lit during alarm |
| Response Threshold | 0.10 dB/m – 0.27 dB/m |
| Maximum Wind Speed | 7.6 m/s |
| Protection Area | 60 m² below 6 m height; 80 m² for 6–12 m height in general sites |
| Relative Humidity | ≤95%, non-condensing |
| Cable Entry Thread | 2 × G3/4 |
| Installation Method | Ceiling mounted |
| Housing Type | Explosion proof enclosure |
| Application | Hazardous area fire detection |
| Compatible System | ANWETECH compatible addressable fire alarm control panel |
The AT-ES02 uses photoelectric smoke detection technology to monitor smoke concentration in hazardous areas. When smoke reaches the alarm threshold, the detector sends an addressable alarm signal to the fire alarm control panel. The panel displays the detector address, helping users quickly locate the fire alarm position.
It is recommended for hazardous locations where early smoke detection is required, especially in industrial areas with explosive gas or combustible dust risk.
The AT-ES02 connects to a compatible addressable fire alarm control panel through the addressable loop.
Loop wiring: two-wire, polarity-insensitive
Addressing: electronically addressed by coder
Alarm transmission: addressable signal to control panel
Alarm location: displayed by detector address on the fire alarm panel
Remote indicator: optional remote indicator output
Dry contact linkage: use an addressable relay module if NO/NC output is required
Important note: The AT-ES02 is an addressable smoke detector. It is not a standalone conventional relay-output detector. If BMS, PLC, fan control, shutdown signal or dry contact output is required, an addressable relay module should be used.
Oil and gas facilities
Petrochemical plants
Chemical factories
Fuel storage areas
Fuel tank farms
Paint spray rooms
Battery rooms
Energy storage areas
Electrical rooms
Power plants
Industrial workshops
Hazardous warehouses
Refineries
Marine and offshore facilities
Mining industrial areas
Combustible dust environments
Explosive gas hazardous areas
