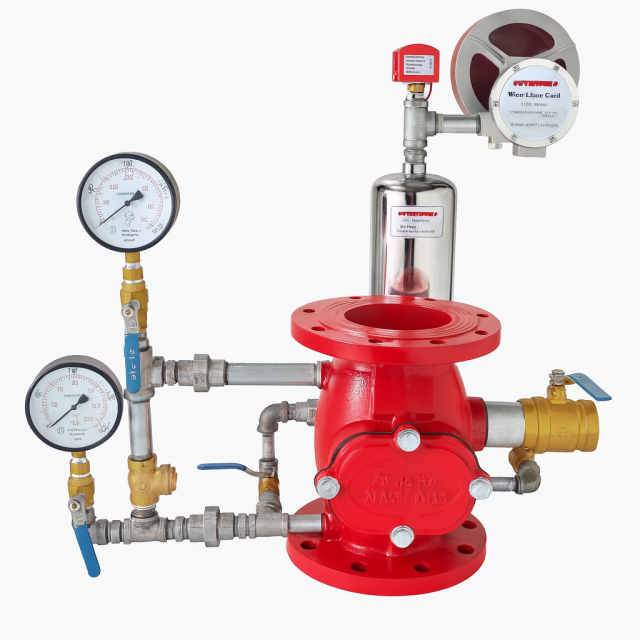

The Wet Alarm Valve is an automatic device installed in wet-pipe fire sprinkler systems.
When a sprinkler operates due to heat, water flows into the system piping and through the valve.
The valve then activates connected alarm devices such as a water motor alarm and/or pressure switch, providing both audible and electrical fire alarm signals.
It includes a retard chamber to prevent false alarms caused by pressure surges and ensures accurate alarm activation during real fire flow conditions.
The valve body is corrosion resistant and designed for long-term stability and reliability.
FM Approved for wet-pipe sprinkler systems
Retard chamber design to reduce false alarms
Reliable and stable alarm operation
Corrosion-resistant body construction
Compact and easy to install
Suitable for automatic wet sprinkler systems
| Item | Specification |
|---|---|
| Nominal Pressure | 1.6 MPa |
| Working Temperature | 4°C – 70°C |
| Flow Direction | One-way |
| Connection Type | Flanged or Grooved |
| Alarm Type | Water motor alarm / Pressure switch |
| System Type | Wet pipe sprinkler system |
| Approval | FM Approved |
| Model | Nominal Diameter (DN) | Connection Type |
|---|---|---|
| 100 | 100 mm (4") | Flanged / Grooved |
| 150 | 150 mm (6") | Flanged / Grooved |
| 200 | 200 mm (8") | Flanged / Grooved |
