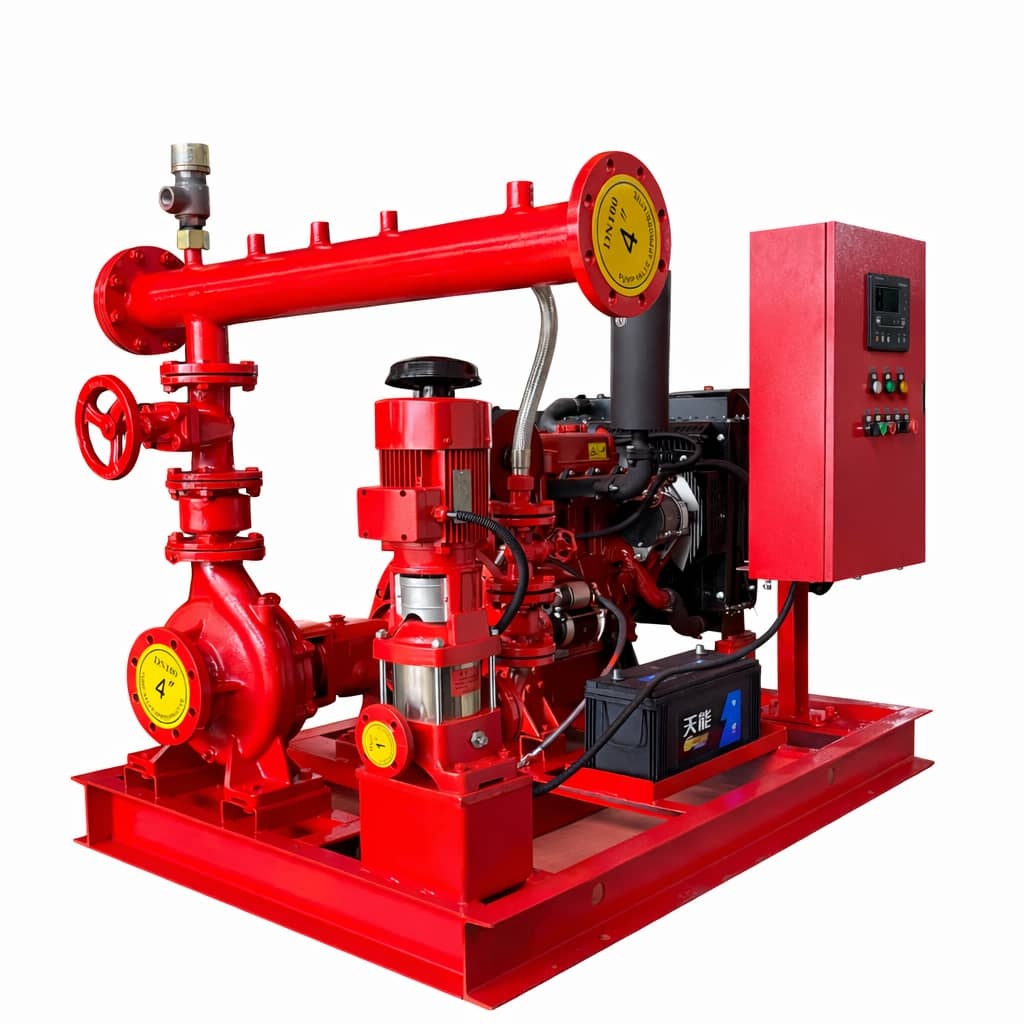

ANWETECH integrated Electric + Diesel + Jockey Fire Pump System provides automatic and reliable fire water supply for industrial and commercial applications, ensuring stable pressure and emergency backup operation.
ANWETECH Fire Pump System is a fully integrated fire water supply solution designed for industrial, commercial, and infrastructure fire protection applications.
The system combines:
• Electric Motor Driven Fire Pump
• Diesel Engine Driven Fire Pump
• Jockey Pump (Pressure Maintenance Pump)
• Intelligent Control Panels
• Common Discharge Header and Base Frame
It ensures automatic operation, stable pressure maintenance, and reliable backup during power failure.
The electric fire pump is designed in accordance with national fire pump standards and features high efficiency, stable performance, and low vibration.
Vertical structure greatly reduces floor space occupation while ensuring dependable operation.
Flow Capacity: 5 – 200 L/s
Head Range: 20 – 230 m
Power Range: 3 – 200 kW
Max Working Pressure: ≤ 2.5 MPa
Medium Temperature: -15°C ~ 120°C
• Vertical multistage or single-stage configuration
• Mechanical seal or packing seal available
• Direct motor coupling
• Flexible inlet/outlet orientation (0° / 90° / 180° / 270°)
• Low noise and vibration
• Residential Buildings
• Commercial Complex
• Hospitals
• Factories
• Hotels
• Fire Hydrant & Sprinkler Systems
The diesel fire pump serves as standby or primary pump where no stable power supply is available.

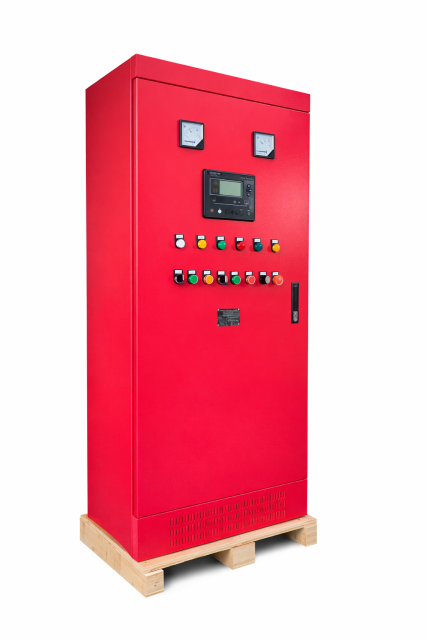

The intelligent controller supports automatic start, monitoring and protection functions.
Flow Capacity: 10 – 900 L/s
Pressure Range: 0.12 – 6 MPa
Diesel Power: 11 – 1100 kW
Speed: 990 / 1500 / 3000 r/min
Altitude: ≤ 2500 m
Ambient Temperature: -25°C ~ +55°C
• Manual / Automatic / Remote control
• Three automatic start attempts
• Automatic shutdown with delay
• Engine oil pressure monitoring
• Water temperature monitoring
• Overspeed protection
• Battery charging system
• Fault alarm system
• Direct coupling between engine and pump
• Base-mounted fuel tank
• Anti-vibration mounting pads
• Integrated exhaust and cooling system
• Fire Hydrant System
• Sprinkler System
• Foam System
• Industrial Emergency Water Supply
• Marine & Offshore Application
• Municipal Emergency Drainage
The jockey pump maintains pipeline pressure during standby condition and prevents unnecessary start of main fire pump.
It adopts stainless steel vertical multistage structure with high efficiency and compact design.
Capacity: 1 – 50 m³/h
Head: 20 – 160 m
Speed: 2900 r/min
Material: Stainless Steel
Seal Type: Mechanical Seal
• Compact vertical structure
• High pressure capability
• Low noise
• Easy installation
• Long service life
Standby Condition
↓
Jockey Pump maintains pressure
Pressure drop detected
↓
Electric Pump starts automatically
Power failure or electric pump failure
↓
Diesel Pump starts automatically
System automatically switches back when power restored.
• Electric Fire Pump
• Diesel Fire Pump
• Jockey Pump
• Electric Control Panel
• Diesel Control Panel
• Pressure Gauge
• Check Valve
• Isolation Valve
• Base Frame / Skid
• Soundproof Canopy
• Trailer Mounted Unit
• PLC Control
• Remote Monitoring
• Flow Meter
• Automatic Weekly Test Function
• Anti-Vibration Pads
• Stainless Steel Wetted Parts
• Industrial Plants
• Petrochemical Facilities
• Warehouses
• Commercial Buildings
• Data Centers
• Hospitals
• Municipal Projects
• Marine & Offshore
