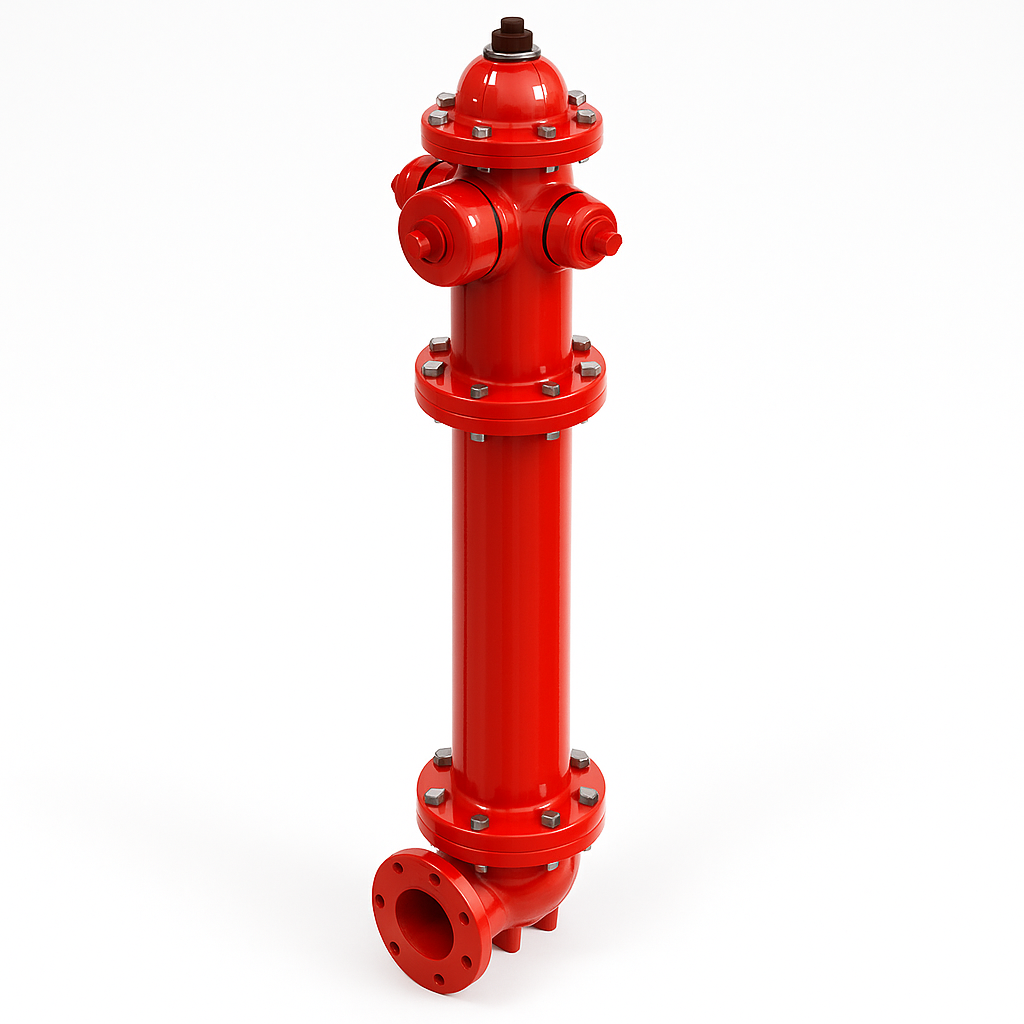

UL FM fireriser dry barrel fire hydrant, 250 psi working pressure. Ductile iron barrel, nozzle, bonnet and base with stainless steel stem coupling; multiple bury depths; standard pumper and hose nozzles; internal and external polyester coating RAL3002, flanged to ANSI / EN1092-2 PN16 for municipal and industrial fire protection systems.
The UL FM Fireriser Dry Barrel Fire Hydrant 250PSI is designed for reliable fire water supply in harsh outdoor climates. The dry barrel construction keeps the main valve and upper barrel free of standing water when the hydrant is closed, reducing the risk of freezing and internal corrosion.
The hydrant design complies with AWWA C502, FM1510 and UL246, using standard pumper outlets (4" / 4.5") and threaded hose nozzles (2.5") with NFPA1963 thread standard. Multiple bury-depth options allow the same hydrant model to suit different pipe cover requirements, while internal and external polyester coating to RAL3002 provides long-term corrosion protection.
Mechanical joints are designed to ANSI / AWWA C111 / A21.11 and AWWA C153 / A21.53. The inlet flange is drilled to ANSI B16.1 Class 125 / ANSI B16.5 Class 150 / EN1092-2 PN16, making the hydrant compatible with common global piping standards.
With a working pressure of 250 psi and temperature range from –10°C to 100°C, this UL Listed and FM Approved dry barrel fire hydrant is ideal for city mains, industrial plants, tank farms and campus networks supplied by a professional China fire hydrant manufacturer.
Certifications: UL Listed (cULus), FM Approved
Design complies with AWWA C502 / FM1510 / UL246
Multi height options for different bury depth
Nozzle thread standard: NFPA1963
Working pressure: 250 psi
Working temperature: –10°C … 100°C
Ductile iron barrel, nozzle, bonnet and base with stainless steel stem coupling
Standard pumper (4" / 4.5") and threaded hose nozzle (2.5")
Internal and external polyester coating to RAL3002
Mechanical joint designed to ANSI / AWWA C111 / A21.11 / AWWA C153 / A21.53
Flanged to ANSI B16.1 Class 125 / ANSI B16.5 Class 150 / EN1092-2 PN16
| Name | Material |
|---|---|
| Operating Nut | Bronze ASTM B62 |
| Dust Ring | EPDM |
| Lock Nut | Stainless Steel 304 |
| Antifriction Mat | Aluminium Bronze / PTFE |
| Plug | Stainless Steel 304 |
| Cover | Ductile Iron A536-65-45-12 |
| Upper Hydrant Body | Ductile Iron A536-65-45-12 |
| Top Shaft | Stainless Steel 420 |
| Gland | Stainless Steel 304 |
| Fire Engine Nozzle Cap | Ductile Iron A536-65-45-12 |
| Fire Engine Nozzle Gasket | EPDM |
| Fire Engine Nozzle | Bronze ASTM B62 |
| Steel Wire Rope | Stainless Steel 304, plastic coated |
| O-Ring | EPDM |
| Coupling | Stainless Steel 420 |
| Lower Hydrant Body | Ductile Iron A536-65-45-12 |
| Safety Flange | Ductile Iron A536-65-45-12 |
| Under Shaft | Stainless Steel 420 |
| Drain Valve Cover | Ductile Iron A536-65-45-12 |
| MJ Elbow Body | Ductile Iron A536-65-45-12 |
| Hexagon Head Bolts | Stainless Steel 304 |
| Flat Washer | Stainless Steel 304 |
| Spring Washer | Stainless Steel 304 |
| Hexagonal Nut | Stainless Steel 304 |
| Drain Valve Cover Seal | EPDM |
| Pin | Stainless Steel 304 |
| Cotter Pin | Stainless Steel 304 |
| Upper Fire Hydrant Body Seal | EPDM |
| Hexagon Socket Head Screws | Stainless Steel 304 |
| Hose Nozzle Cap | Ductile Iron A536-65-45-12 |
| Hose Nozzle Gasket | EPDM |
| Hose Nozzle | Bronze ASTM B62 |
| Hexagon Socket Set Screws | Stainless Steel 304 |
| Drain Valve Cap | Bronze ASTM B62 + EPDM |
| Spring | Stainless Steel 304 |
| Seat | Bronze ASTM B62 |
| Tablet | Ductile Iron A536-65-45-12 |
| Disc Sealing Ring | EPDM |
| Disc | Ductile Iron A536-65-45-12 |
| Nut Press Ring | Ductile Iron A536-65-45-12 + EPDM |
| Bury Depth (feet) | H (mm) |
|---|---|
| 1' | 326 |
| 2' | 543 |
| 3' | 848 |
| 3½' | 1001 |
| 4' | 1153 |
| 4½' | 1306 |
| 5' | 1458 |
| 5½' | 1611 |
| 6' | 1763 |
| 6½' | 1916 |
| 7' | 2068 |
Note: The standard buried depth is 4' / 1153 mm.
