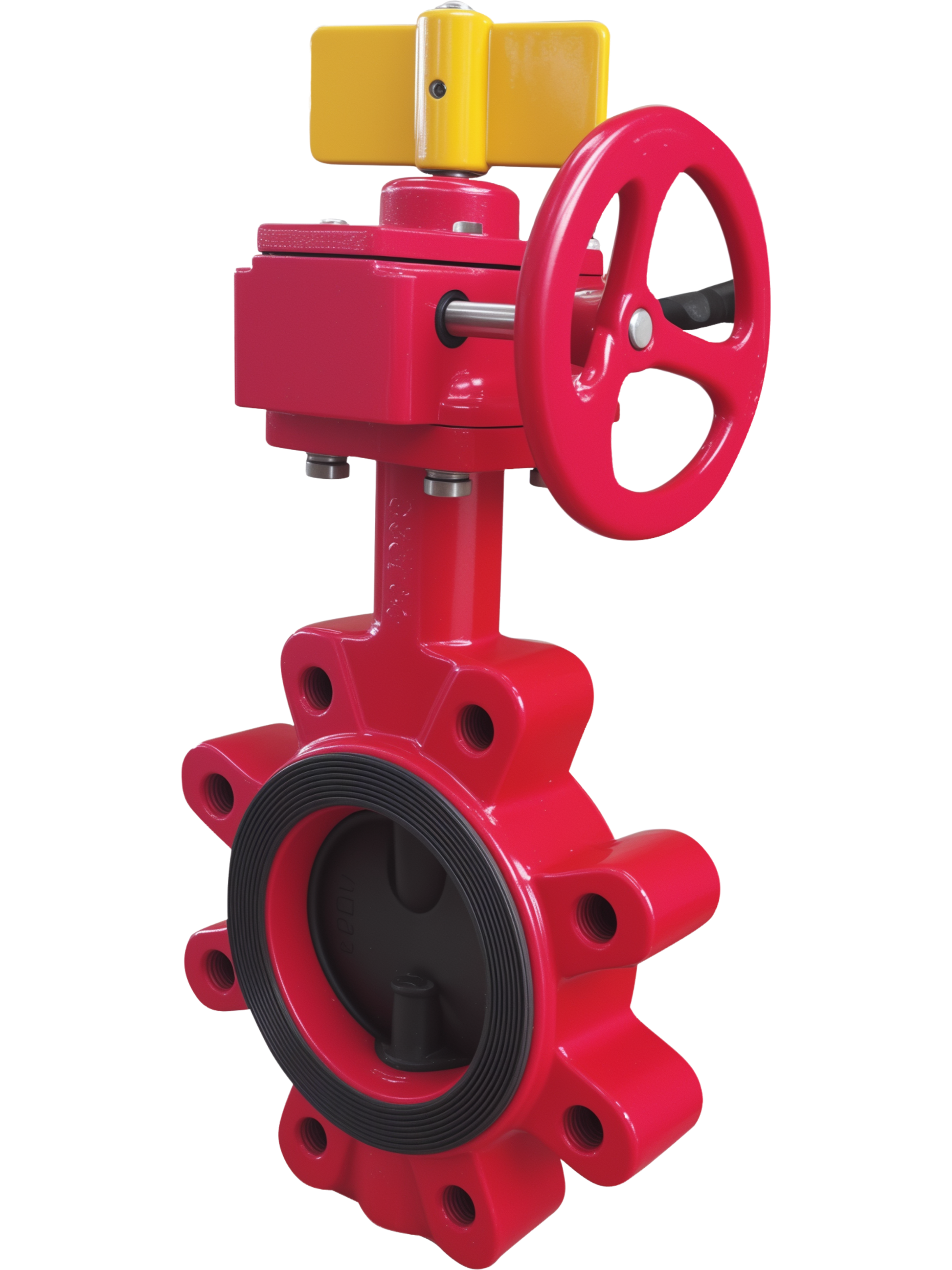

The UL FM Highriser Butterfly Valve Lug Type 300PSI is designed for use on fire risers, sprinkler systems and fire pump discharge lines where reliable isolation and clear position indication are required. The valve conforms to MSS SP-67 and BS EN593:2009, and its design and testing comply with FM1112 and UL1091, ensuring dependable performance in international fire protection applications.
The valve body and disc are made from ductile iron ASTM A536 65-45-12, with an EPDM encapsulated disc for tight shut-off and long service life. A fusion bonded epoxy coating RAL3002 provides excellent corrosion resistance for both indoor and outdoor installations. The highriser butterfly valve is fitted with a visual indicator and supervisory switch to monitor open/close status through the fire alarm and monitoring system.
Lugged connection is suitable for ANSI Class 150, BS 4504 PN16 and EN 1092-2 PN16 flanges, allowing easy installation and removal of downstream piping. With a working pressure of 300 psi non-shock cold water and maximum test pressure of 600 psi, this UL Listed and FM Approved lug type butterfly valve is an ideal choice for commercial, industrial and high-rise building fire protection projects looking for a reliable China supplier and manufacturer.
Valve conforms to MSS SP-67 / BS EN593: 2009
Design and test standard conforms to FM1112 and UL1091
Fusion bonded epoxy coated RAL3002
Fitted with visual indicator and supervisory switch
EPDM encapsulated disc
Valve suitable for indoor and outdoor installation
Lugged connection to ANSI Class 150 / BS 4504 PN16 / EN 1092-2 PN16
Working pressure: 300 psi – Non Shock Coldwater
Max. Test Pressure: 600 psi
Working temperature: -10°C … 120°C
UL Listed (cULus) and FM Approved
| Name | Material |
|---|---|
| Body | Ductile Iron ASTM A536 65-45-12 |
| Disc | Ductile Iron ASTM A536 65-45-12 + EPDM |
| Lower Shaft | Stainless Steel SS410 |
| Upper Shaft | Stainless Steel SS410 |
| Signal Gearbox | Ductile Iron ASTM A536 65-45-12 |
| O-Ring | EPDM |
| Bushing | Bronze ASTM B150M C63000 |
| Gland | Galvanized Carbon Steel Surface Passivation |
| Washer | Galvanized Carbon Steel Surface Passivation |
| Plug | Galvanized Carbon Steel Surface Passivation |
| Gear Box Fasteners | Galvanized Carbon Steel Surface Passivation |
| Size (mm / inch) | 50 / 2" | 65 / 2½" | 80 / 3" | 100 / 4" | 125 / 5" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" |
|---|---|---|---|---|---|---|---|---|---|
| A | 140.5 | 152.5 | 157.5 | 176 | 191 | 202.5 | 243.5 | 273 | 311 |
| B | 77 | 80 | 87 | 108 | 132 | 144 | 174 | 208 | 261 |
| C | 110 | 110 | 110 | 110 | 133 | 133 | 187 | 187 | 187 |
| H | 262.4 | 274.5 | 279.5 | 298 | 313.5 | 330 | 379 | 409 | 465 |
| L | 43 | 46 | 46 | 52 | 56 | 56 | 62 | 68 | 78 |
| L1 | 47 | 51 | 51 | 57 | 61 | 61 | 67 | 73 | 83 |
| ΦD | 82 | 97 | 109 | 140 | 165 | 198 | 252 | 304 | 355 |
| ΦE | 108 | 108 | 108 | 108 | 150 | 150 | 250 | 250 | 250 |
| Size (inch / mm) | 2"/50 | 2.5"/65 | 3"/80 | 4"/100 | 5"/125 | 6"/150 | 8"/200 | 10"/250 | 12"/300 |
|---|---|---|---|---|---|---|---|---|---|
| N.W. (kg) | 6.7 | 7.6 | 8.1 | 11.7 | 15.3 | 17.9 | 23.7 | 32.8 | 45.3 |
| Crate Qty (pcs) | 60 | 60 | 60 | 40 | 30 | 30 | 20 | 20 | 10 |
