Short Description

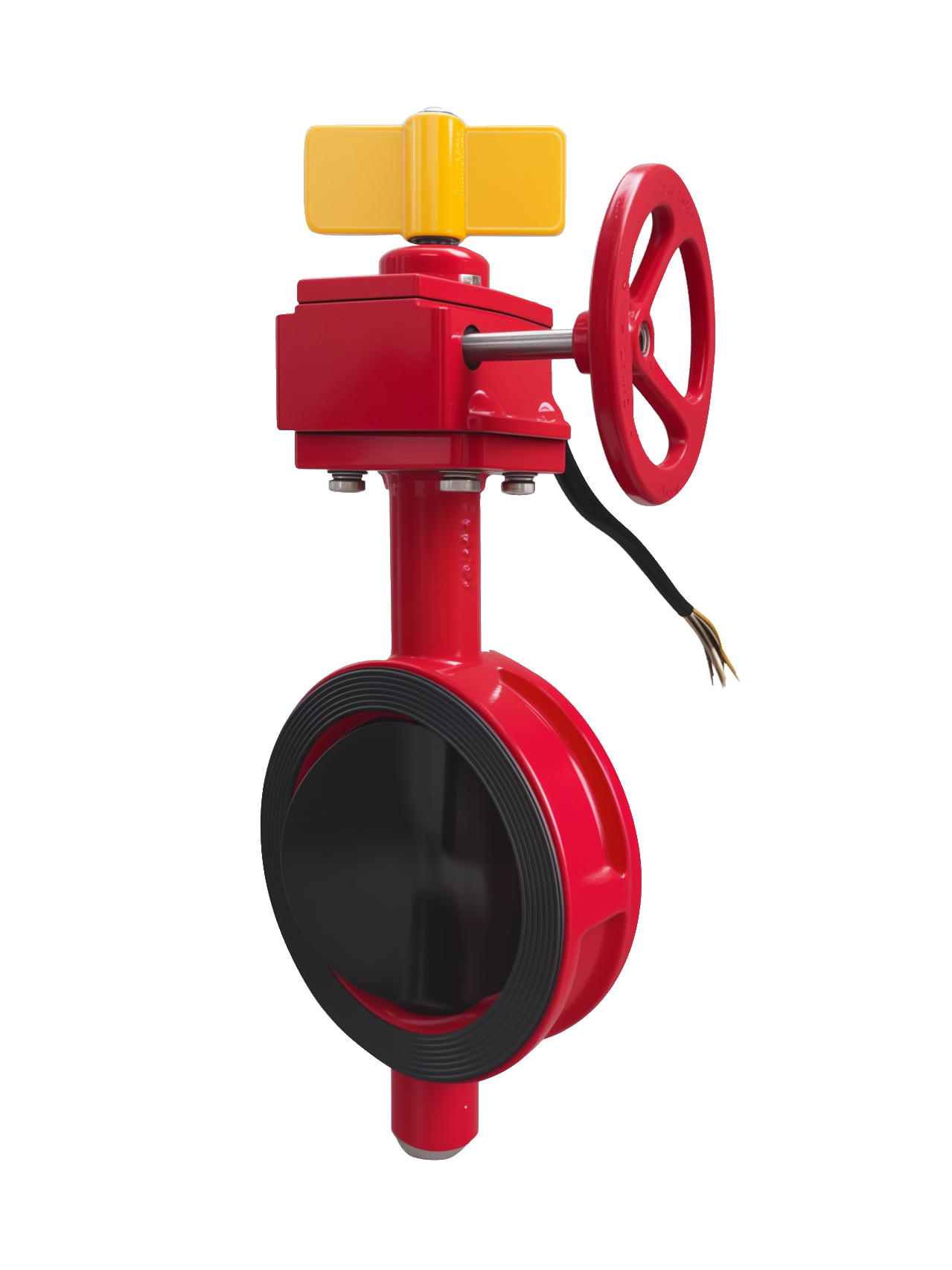

UL Listed and FM Approved highriser wafer type butterfly valve, 300psi working pressure, ductile iron body with fusion bonded epoxy coating and EPDM encapsulated disc. Designed for fire sprinkler and fire pump systems, available in sizes 2"–12".
Key Features
• Wafer type highriser butterfly valve with visual position indicator and supervisory switch
• Conforms to MSS SP-67 and BS EN593:2009
• Design and test in accordance with FM1112 and UL1091
• Fusion bonded epoxy coating RAL3002 for excellent corrosion resistance
• EPDM encapsulated disc for tight shutoff and long service life
• Suitable for indoor and outdoor installation
• Universal wafer connection for ANSI Class 150 / BS 4504 PN16 / EN1092-2 PN16 flanges
• Working pressure: 300 psi, non-shock cold water
• Maximum test pressure: 600 psi
• Working temperature: -10°C to +120°C
Certifications
• UL Listed (cULus)
• FM Approved
Materials
Body: Ductile Iron ASTM A536 65-45-12
Disc: Ductile Iron ASTM A536 65-45-12 + EPDM
Lower Shaft: Stainless Steel SS410
Upper Shaft: Stainless Steel SS410
Signal Gearbox: Ductile Iron ASTM A536 65-45-12
O-Ring: EPDM
Bushing: Bronze ASTM B150M C63000
Gland: Galvanized Carbon Steel, surface passivation
Washer: Galvanized Carbon Steel, surface passivation
Plug: Galvanized Carbon Steel, surface passivation
Gear Box Fasteners: Galvanized Carbon Steel, surface passivation
| Size (inch/mm) | 2"/50 | 2.5"/65 | 3"/80 | 4"/100 | 5"/125 | 6"/150 | 8"/200 | 10"/250 | 12"/300 |
|---|---|---|---|---|---|---|---|---|---|
| A (mm) | 140.5 | 152.5 | 157.5 | 176 | 191 | 202.5 | 243.5 | 273 | 311 |
| B (mm) | 77 | 80 | 87 | 108 | 132 | 144 | 174 | 208 | 261 |
| C (mm) | 110 | 110 | 110 | 110 | 133 | 133 | 187 | 187 | 187 |
| H (mm) | 262.4 | 274.5 | 279.5 | 298 | 313.5 | 330 | 379 | 409 | 465 |
| L (mm) | 43 | 46 | 46 | 52 | 56 | 56 | 62 | 68 | 78 |
| L1 (mm) | 47 | 51 | 51 | 57 | 61 | 61 | 67 | 73 | 83 |
| ΦD (mm) | 82 | 97 | 109 | 140 | 165 | 198 | 252 | 304 | 355 |
| ΦE (mm) | 108 | 108 | 108 | 108 | 150 | 150 | 250 | 250 | 250 |
| Size (inch/mm) | 2"/50 | 2.5"/65 | 3"/80 | 4"/100 | 5"/125 | 6"/150 | 8"/200 | 10"/250 | 12"/300 |
|---|---|---|---|---|---|---|---|---|---|
| N.W. (kg) | 4.6 | 4.9 | 4.9 | 6.1 | 10.3 | 12.2 | 22.9 | 28.7 | 46.5 |
| Crate Qty (pcs) | 95 | 85 | 75 | 60 | 50 | 40 | 25 |
