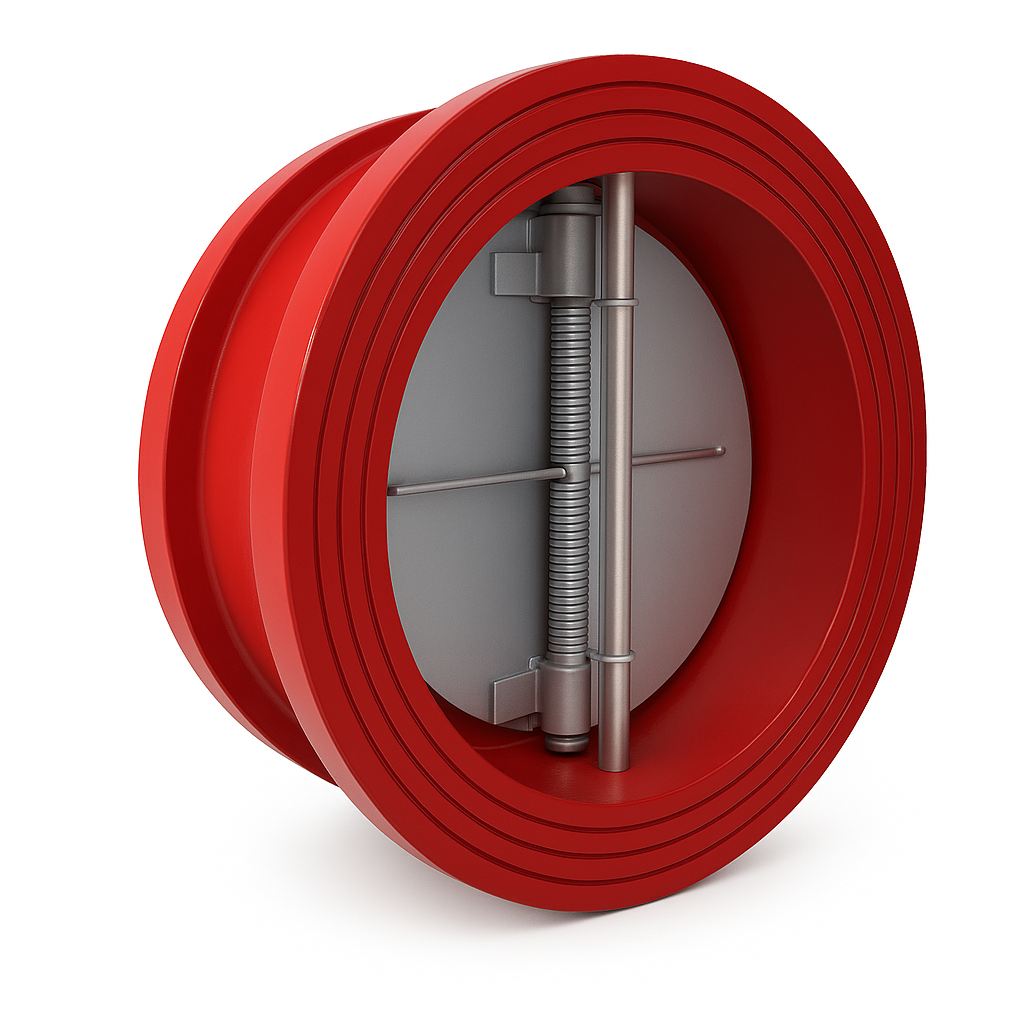

UL FM Highriser Double Door Check Valve Wafer Type 300PSI

Product Description

The UL FM Highriser Double Door Check Valve Wafer Type 300PSI – is a compact non-return valve designed to prevent backflow while minimizing pressure loss. The spring loaded double door design ensures quick closing and reduces water hammer, while the rubber seat provides a non-slam, tight shut-off.

The wafer-style body fits between ANSI Class 125/150, EN 1092-2 PN16 and BS10 Table D/Table E flanges, making installation easy in new or existing pipework. A ductile iron body with fusion bonded epoxy coating RAL3002 offers excellent corrosion resistance, and stainless steel discs, stems and springs provide long-lasting performance.

With a working pressure of 300 psi and temperature range from -20°C to 110°C, this UL Listed and FM Approved double door check valve is ideal for fire mains, sprinkler systems, pump discharge lines and general water distribution networks supplied by a reliable China manufacturer.

Features & Specifications

• Spring loaded double door

• Rubber seat for non-slam effect

• Fusion bonded epoxy coated RAL3002

• Valve conforms to API 594

• Wafer connection to ANSI Class 125 / ANSI Class 150 / EN 1092-2 PN16 / BS10 Table D / Table E

• Working pressure: 300 psi

• Working temperature: -20°C … 110°C

• UL Listed (cULus)

• FM Approved

Materials List

Note: Lifting ring for DN200 and above.

Size (inch/mm)	2"/50	2.5"/65	3"/80	4"/100	5"/125	6"/150	8"/200	10"/250	12"/300
H (inch/mm)	2.13 / 54	2.36 / 60	2.64 / 67	2.64 / 67	3.27 / 83	3.74 / 95	5 / 127	5.51 / 140	7.13 / 181

Size (inch/mm)	2"/50	2.5"/65	3"/80	4"/100	5"/125	6"/150	8"/200	10"/250	12"/300
N.W. (kg)	1.80	2.90	4.80	5.40	8.10	12.00	19.20	33.20	52.90
Crate Qty	1296	686	539	396	250	168	84	54	28
