FR104 fire emergency broadcasting panel is composed of an area control panel, audio source module and 150 W broadcasting power amplifier. It works together with fire alarm controllers, output modules and loudspeakers to form a complete fire emergency broadcasting and voice evacuation system.
When the fire linkage controller outputs a start signal, the panel automatically switches to emergency broadcast mode and sends pre-recorded fire emergency messages or live MIC paging to the connected speakers. FR104 is suitable for shopping malls, office buildings, factories, schools, hospitals and other projects that require reliable voice evacuation.

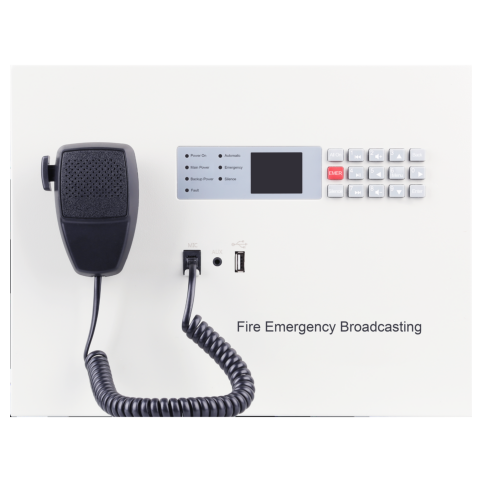

Wall mounted 150 W fire emergency broadcasting and voice control panel
Works with fire alarm linkage controllers via 24 V start signal
120 V constant-voltage speaker output for emergency broadcasting
Four broadcast modes: emergency audio (EMER), MIC paging, USB / MP3 playback and AUX external audio input
Emergency audio message can be recorded via microphone or imported via USB flash drive (up to 30 s)
30-minute loop recording memory for events and operations
Automatic fault detection for speaker line, main power and standby power with audible and visual fault alarm
Overload protection: output voltage reduction under minor overload and automatic shutdown under severe overload
Optional communication module for data exchange with the fire linkage controller
Self-test function for quick panel check (indicators, buzzer and LCD backlight)
Clear LCD menu for EMER Radio, MIC Radio, MP3, AUX, record list, self-test and reset
Built-in fuse to cut off power in case of internal short-circuit
Natural air-cooled design, suitable for continuous operation in typical indoor environments
Working Environment
Ambient temperature: 0 °C to 40 °C
Relative humidity: ≤ 95% RH, non-condensing
Electrical
Mains input: AC 187 V to AC 242 V
Speaker output: 120 VAC constant-voltage line
Rated output power: 150 W
Frequency response: 80 Hz to 8 kHz (±3 dB)
Harmonic distortion: ≤ 5%
Signal-to-noise ratio: ≥ 70 dB
Recording
Recording time: 30 minutes loop recording
Mechanical
Installation type: wall mounted
Approximate dimensions: 318 mm × 245 mm × 127 mm (including front part about 39 mm)
Wiring and Interfaces
Speaker line: twisted pair cable, cross-section ≥ 1.5 mm², insulation to ground > 20 MΩ; 120 V constant-voltage speakers with internal DC isolation capacitor 1 µF / 250 V
Main power input: fire-fighting AC 220 V power supply
Backup power input: stand-by AC 220 V fire-fighting power supply
Emergency start input: 24 V signal from fire alarm linkage controller
Speaker output: connect to constant-voltage loudspeakers
Communication port: optional protocol conversion module
MIC input: microphone for live paging and recording
AUX input: 3.5 mm audio input for external audio source
USB port: USB flash drive for MP3 playback and emergency message import
Suitable for small and medium-size fire emergency broadcasting zones, including:
Retail shops and small shopping centres
Office floors and commercial buildings
Small plants and warehouses
Schools, training centres and clinics
